C6 - Engine Oil Hose Kit

• Uses factory bypass port above oil filter to add oil cooler ports to GM LS engines.
• A built-in thermostat helps reduce engine wear and horsepower losses by preventing oil temperatures from dropping below optimal levels.
• A thickness of 1.30" to maximize header clearance and work with most long tube headers.
• 6061-T6 billet aluminum construction with black MIL-A-8625 Type II anodized finish
• 1/8" NPT port for a sensor or turbo feed.
• Lifetime warranty. Made in USA
• Retains stock oil filter location and has Viton seals throughout

Model: 32-894D

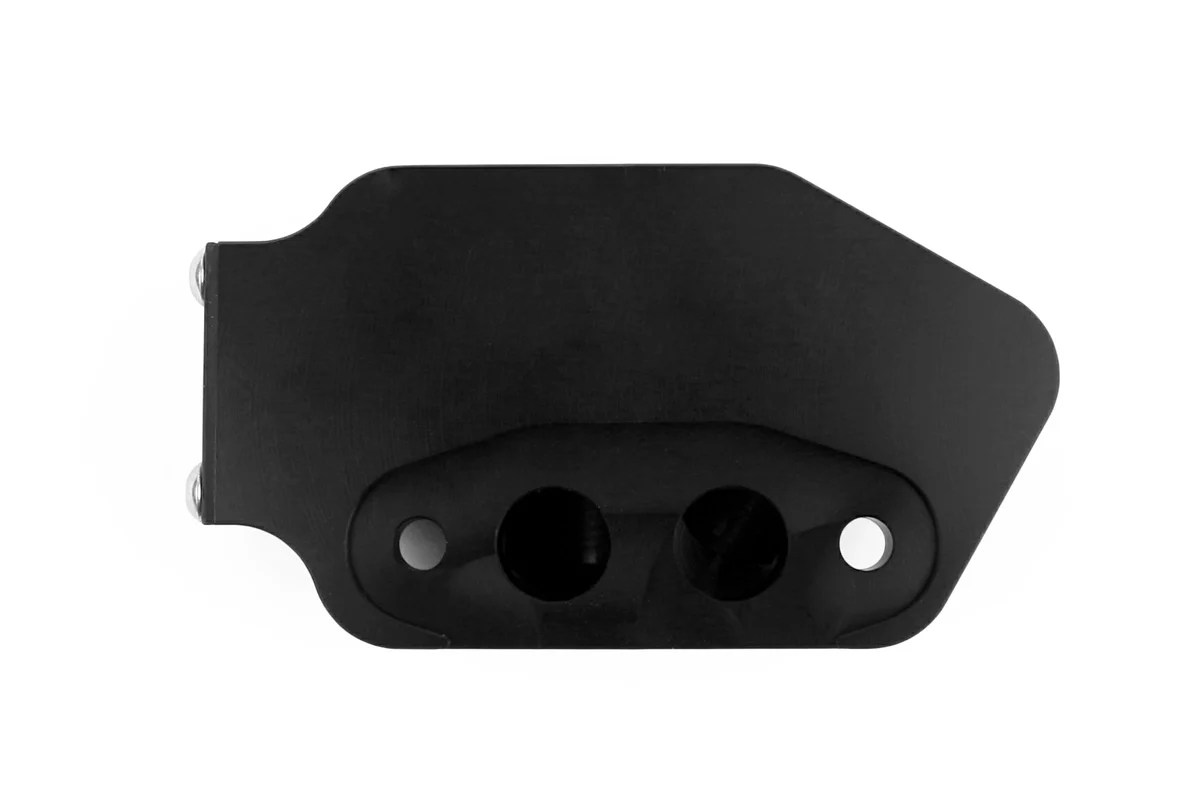

This low-profile oil cooler adapter bolts directly to the factory LS engine on a 2005-2013 Chevrolet Corvette (C6). The adapter block has a built-in thermostat to help protect the engine by speeding up warm-up time and maintaining oil temperatures at optimal levels. The thermostat maintains a minimum oil temperature of 180°F (82°C) in most conditions with a full flow temp of 203ºF (95°C) .

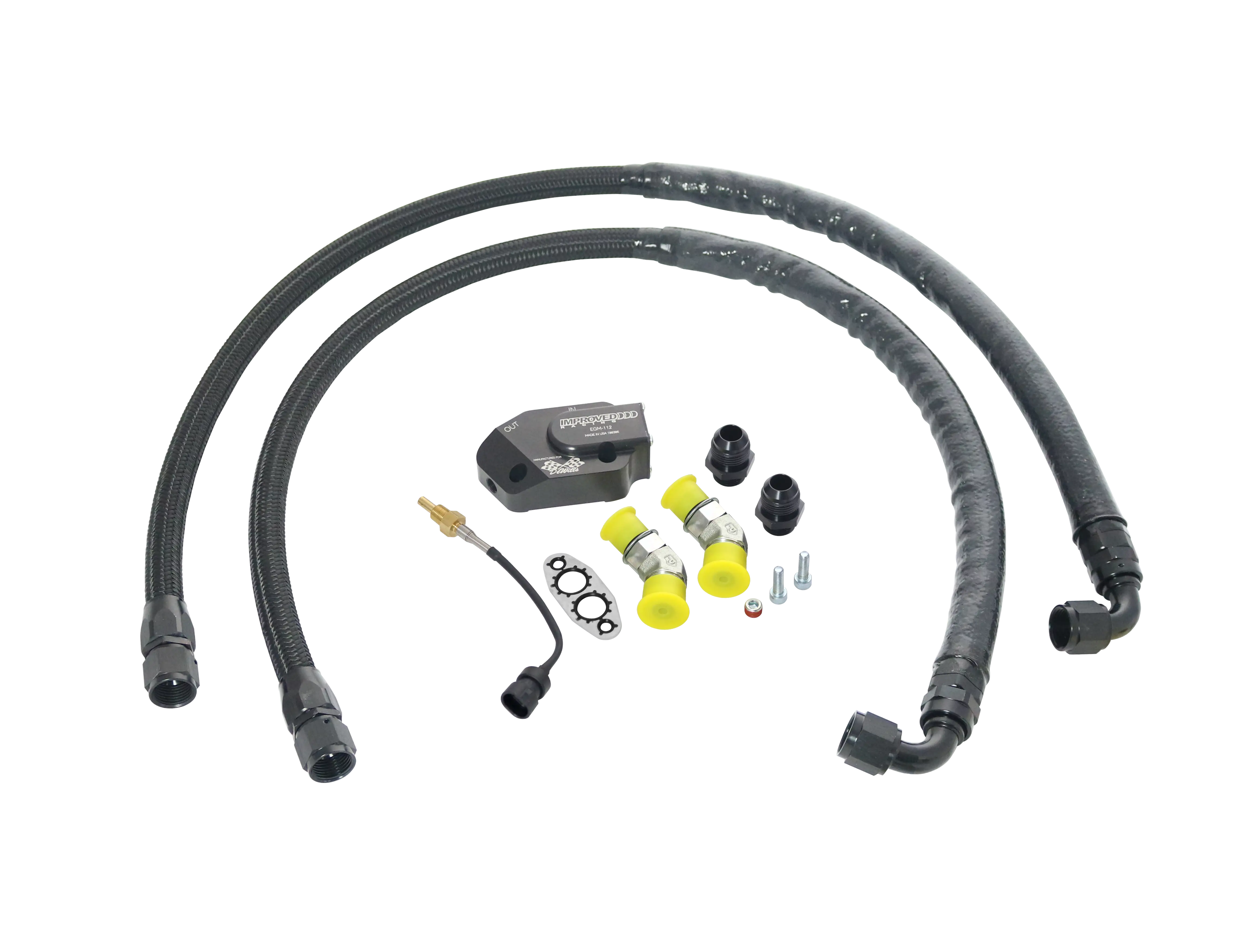

The kit includes an oil adapter block, GM oil seal, metric bolts, a 1/8"npt plug, two large -10 AN fittings and lines. The hoses are lightweight -10AN oil lines featuring a Viton rubber interior, stainless reinforcement to prevent kinking, and a fire-proof silicone-fiberglass insulation sleeve. The oil block includes a port for the factory temperature sender, along with a new temp sender and an auxiliary port for other needs. Kit includes everything needed for hooking up an aftermarket internal oil cooler on your C6 Corvette.

When installing, please note the 45° line ends go to the heat exchanger and the straight hose end screws into the "out" port on the oil block. The 120° line end attaches to the "in" port on the oil block adapter.

Specs
