Radiator

PRO SERIES (2 ROW 1.00" TUBES)

DeWitts Pro-series aluminum radiators feature two rows of 1.0" wide cooling tubes which provides a 25% increase in cooling performance. Our Direct Fit™ aluminum radiators feature factory type press formed end tanks, serpentine fins, and the factory type upper and lower channels. Each radiator core is assembled and brazed in our state of the art aluminum brazing furnace. DeWitts radiators are also epoxy free and come with a limited lifetime warranty. Direct Fit™ is our official trademark and it means your radiator will fit, without modifications.

Specifications:

	DeWitts Direct Fit®	Original Equipment
Radiator Style:	Single Pass	Single Pass
Radiator Flow Direction:	Downflow	Downflow
Material Type:	Aluminum	Aluminum
Inlet Location:	Upper Passenger side	Upper Passenger side
Outlet Location:	Lower Driver side	Lower Driver side
Row Quantity:	2	4
Tube Size:	1"	.40”
Core Width:	26"	26”
Core Height:	17.25"	17.25”
Overall Width:	28”	28”
Core Thickness:	2.25"	2.5”
Overall Thickness:	3”	2.875”
Overall Height:	22.0”	22.0”
Cap Included:	No	No
Finish:	Natural or Black	Black
Filler Neck Height:	1”	1”
Inlet Size:	1.5”	1.5”
Outlet Size:	1.75”	1.75”
Cooler Thread Size:	5/16" Inverted Flare	5/16" Inverted Flare

Mopar/Jeep

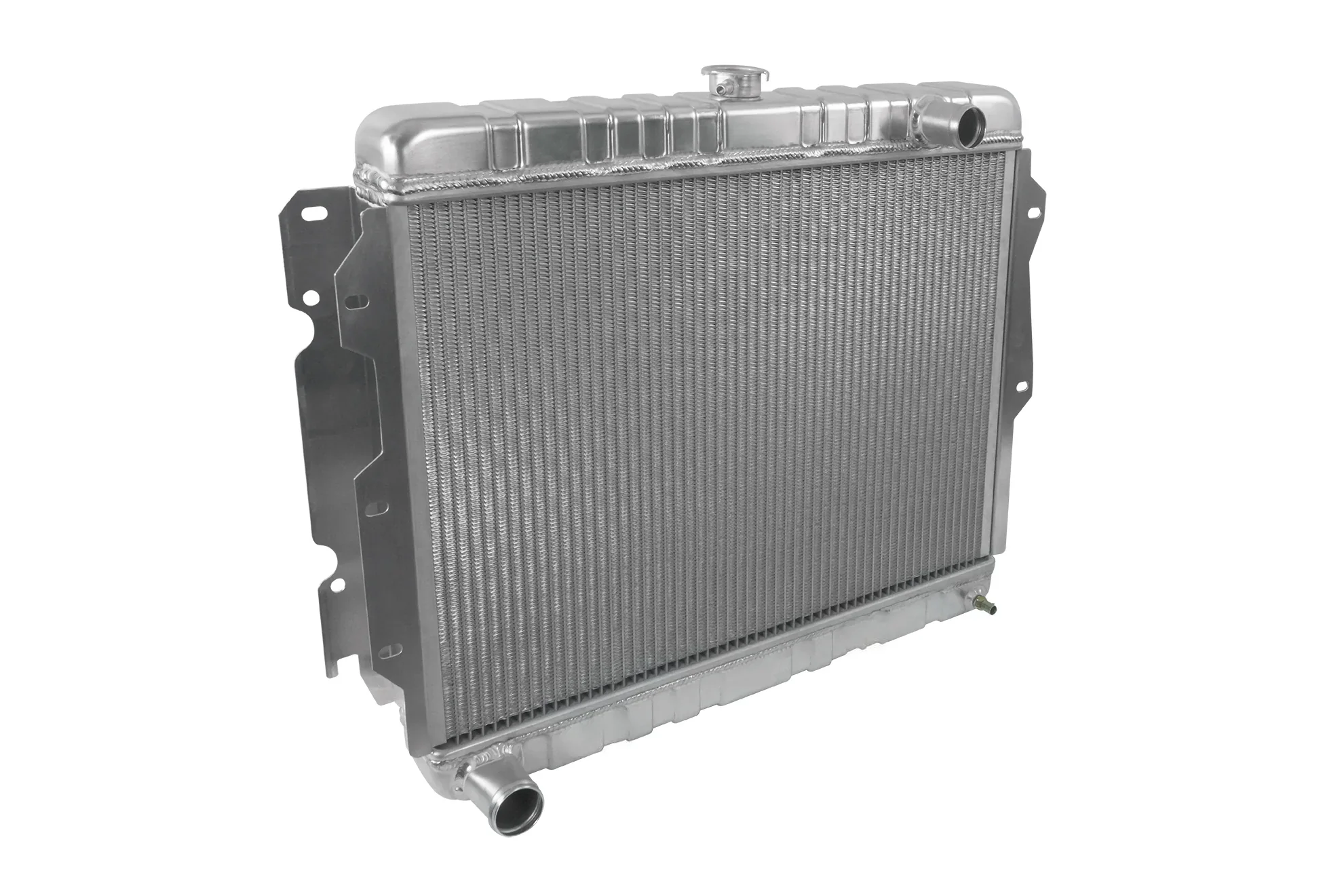

1966-1969 B-Body Mopar Radiator TR/BL
